API SIGMA Plate Heat Exchanger Models

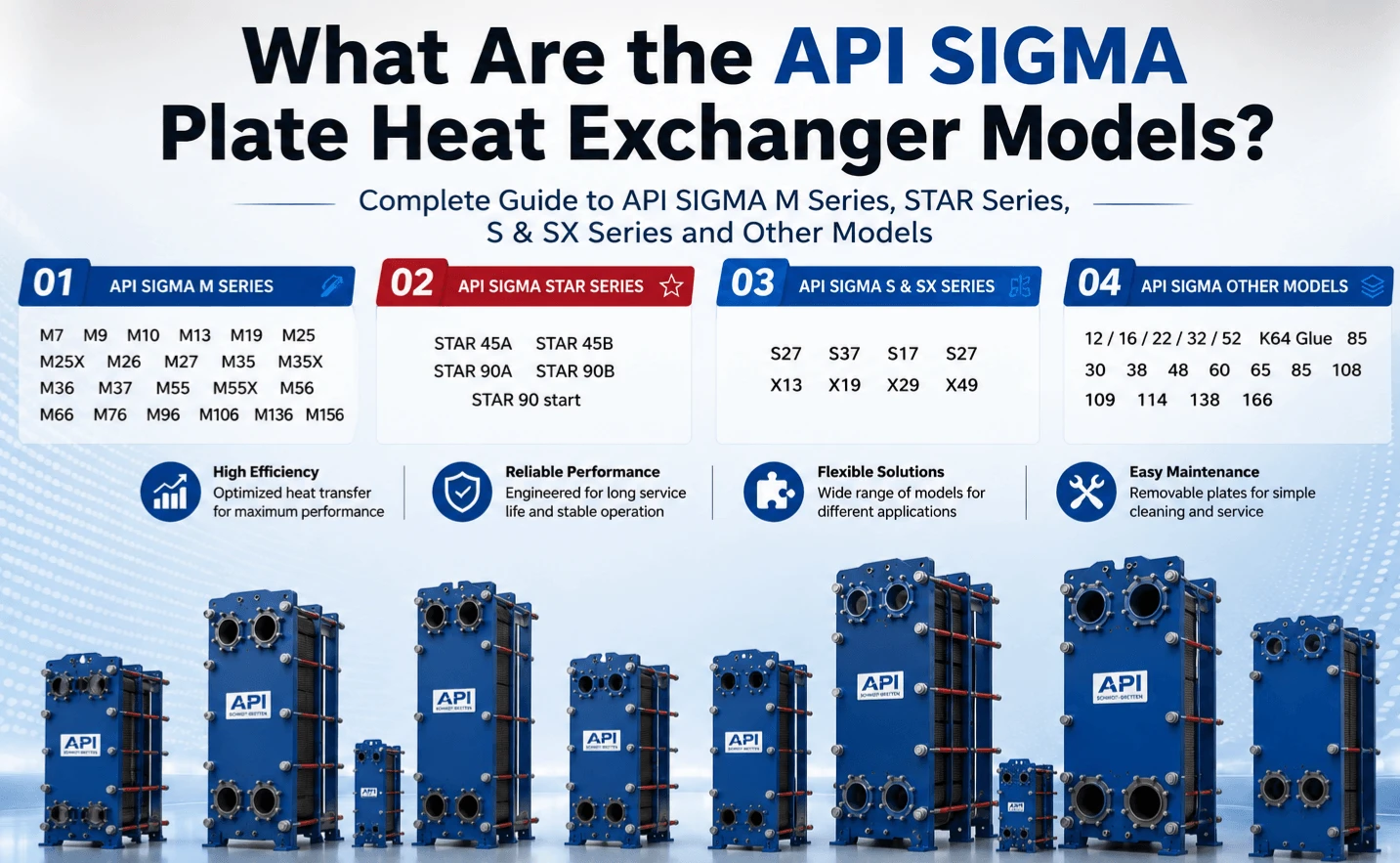

The API SIGMA range includes different plate sizes, corrugation patterns, materials, gasket configurations, and frame designs. This modular construction allows the heat exchanger to be configured according to the required flow rate, temperature, pressure, and heat transfer duty.This guide introduces the API Schmidt-Bretten SIGMA plate heat exchanger models shown in the supplied model list, organized into four groups: the SIGMA M Series, SIGMA STAR Series, SIGMA S & SX Series, and SIGMA Other Models.
API SIGMA M Series
- SIGMA M7
- SIGMA M9
- SIGMA M10
- SIGMA M13
- SIGMA M19
- SIGMA M25
- SIGMA M25X
- SIGMA M26
- SIGMA M27
- SIGMA M35
- SIGMA M35X
- SIGMA M36
- SIGMA M37
- SIGMA M55
- SIGMA M55X
- SIGMA M56
- SIGMA M66
- SIGMA M76
- SIGMA M96
- SIGMA M106
- SIGMA M136
- SIGMA M156
01
API SIGMA STAR
Series
- SIGMA STAR 45A
- SIGMA STAR 45B
- SIGMA STAR 90A
- SIGMA STAR 90B
- SIGMA STAR 90 START
02
API SIGMA S & SX Series
- SIGMA S17
- SIGMA S27
- SIGMA S37
- SIGMA X13
- SIGMA X19
- SIGMA X29
- SIGMA X49
03
API SIGMA Other Models
- SIGMA 12/16/22/32/52
- SIGMA K64 Glue
- SIGMA 30
- SIGMA 38
- SIGMA 48
- SIGMA 60
- SIGMA 65
- SIGMA 85
- SIGMA 108
- SIGMA 109
- SIGMA 114
- SIGMA 138
- SIGMA 166
04
